Application
Residential Entry Doors: Where locking security has required without latch , Stoor room | Terrace Door
Product specification
ML-117
Dead Lock 50 BST
4 specifications Technical diagram OEM Ready
Request OEM Quote →
Product overview

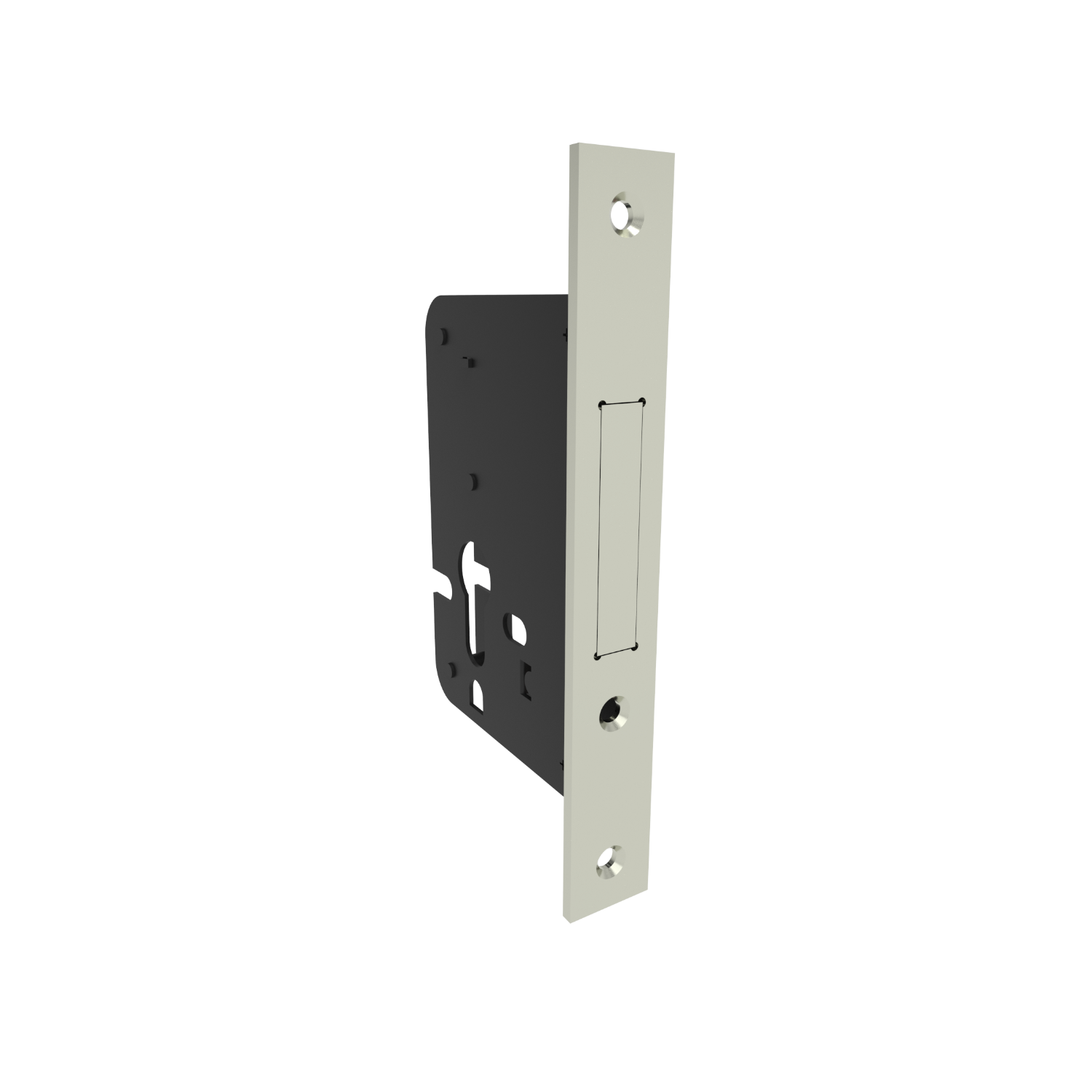

Dead Lock 50 BST
View product material, finish, specification, line diagram and technical details.
ML-117
Mortise Lock Body & Cases

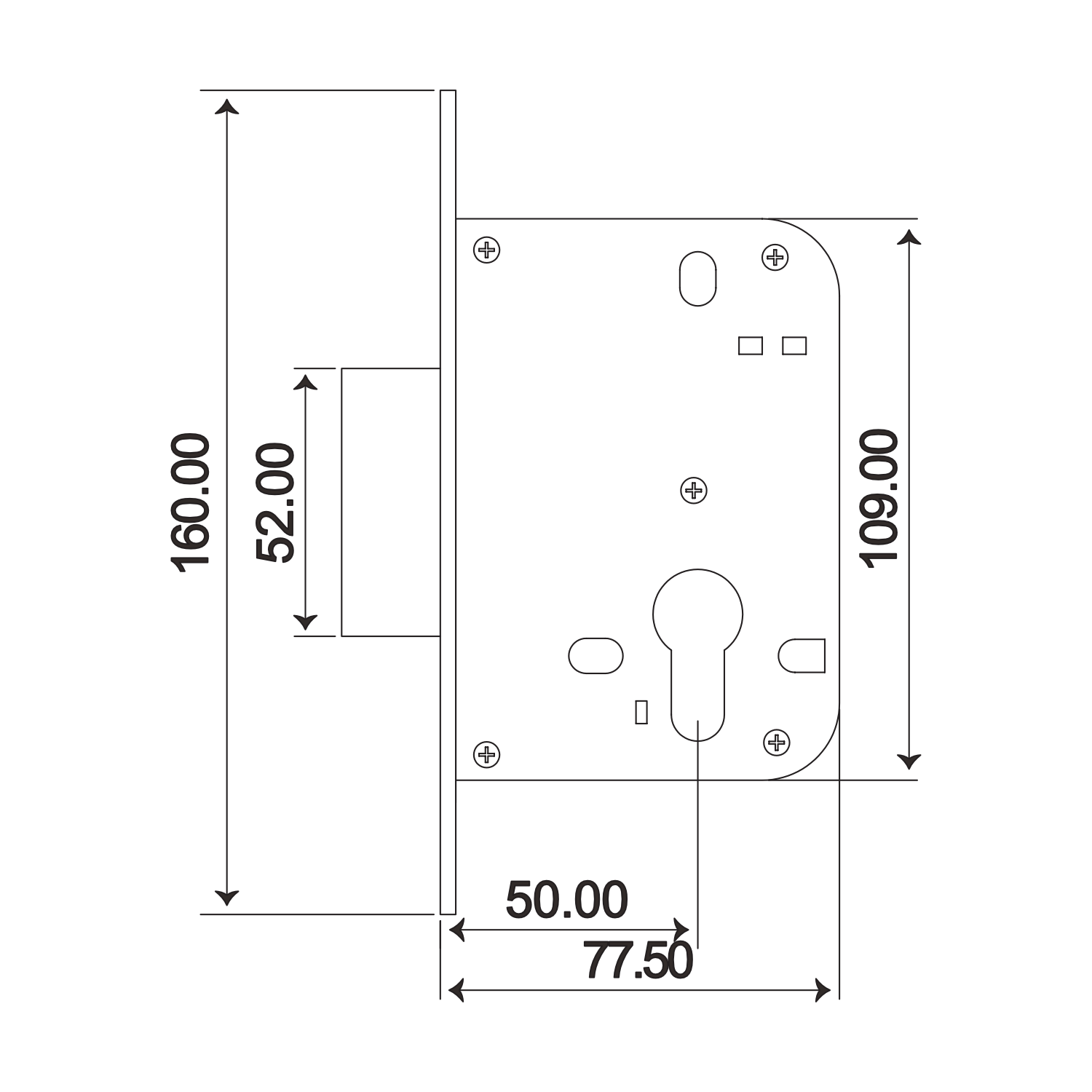

Technical diagrams
Line diagram, drawing and reference visuals
Technical specification
Specification table
Material
Front Plate | SS-202 | SS-304 |
Striker Plate | SS-202 | SS-304 |
Deadbolt | Brass | ZAMAK-3 |
Latch | NA |
Follower | NA |
Production Capacity
- +100000 Cylcle tested
- Acetone Test Passed 1000+
- SST Passed
- Pencile Hardness Passed 4H+
Reference Standard
Follow BS EN 12209:2003
2 | B | 7 | 0 | 0 | C | - | B | 0 | 1 | 0 |
Note : Mortise lock are manufactured in compliance with BSEN 12209:2003 Standard
Feature
• Suitable for 25-50 mm Thick Door
• Suitable for Wooden Door
• Double throw Deadbolt in Solid Brass | Zinc With 20mm Projection
• 50mm Center Back-set
• Suitable for Wooden Door
• Double throw Deadbolt in Solid Brass | Zinc With 20mm Projection
• 50mm Center Back-set
Finish
SS | AB | Black | RG | Gold | PVD Finishes
Branding
As Per Customer Standard
Custom product requirement
Send product requirement →
Need a version for your brand?
Share your drawings, required material, finish, logo marking and packaging brief with our OEM team.
